Hot sale lightweight precast concrete eps sandwich wall panel making machine factory

FOB Reference Price:Get Latest Price
$100,000.00 - $190,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OYD-V-20180105
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
Place of Origin:
Shandong, China
Brand Name:
OYD wall panel machine
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:
1 Year, 12 months
Name:
light weight wall panels making machine
Product size:
2440-3050mmx610x40-200mm normally, can be adjusted accordingly
Machine features:
High equipment ,low failure rate ,muli-function,long service time
Application:
interior wall /floor /exterior/roof/ceiling
Certificate assurance:
CE, ISO9000 etc
Capacity:
300,000-500,000 sqm per year
Control System:
normal electrical or PLC with touch screen
Machine material:
High quality carbon steel
Automation degree:
Automatic
Supply Ability
Supply Ability:
30 Set/Sets per Year
Packaging & Delivery
Packaging Details
1. 20FT/40FT standard land and sea package;
2. The PLC controller covered by foam film;
3. Spare parts and some some parts packed in box;
4. All components fixed by steel wire in container.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

EPS cement sandwich panel production line/sandwich panel from china is now totally new and hot in the world. But there are very few suppliers in the world. It is now replacing traditional building materials in the structure. We are specialized in this machine for over 10 years.

Machinery Parameters
Capacity
20,000sqm~600,000sqm per year
Thickness
50-200mm thickness. Or customize the size you like
Length
2400~3000mm
Width
610mm
Raw material

There are mainly two different types

1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)

2. Fomed cement+additives

Finished board type

1. Composite board/sandwich board, with surface board

2. Lightweight solid panel, without furface board

Surface board types

1. Calcium silicate board   2. Fiber cement board    3. Mgo board

EPS cement sandwich panel production line
Unique advantage
 1.Double -function mold car ,can produce panel with surface board and without surface board
2.Our machinery has a long service time and low failure rate ,no need repair often
3.We have a short machine testing time 10-15days to help you save raw materials cost
4.Perfect after-sale service systerm , skilled technical training and installation service .
5.Unique production technology formula to help you occupy more market
Detailed Images

Machine Parts

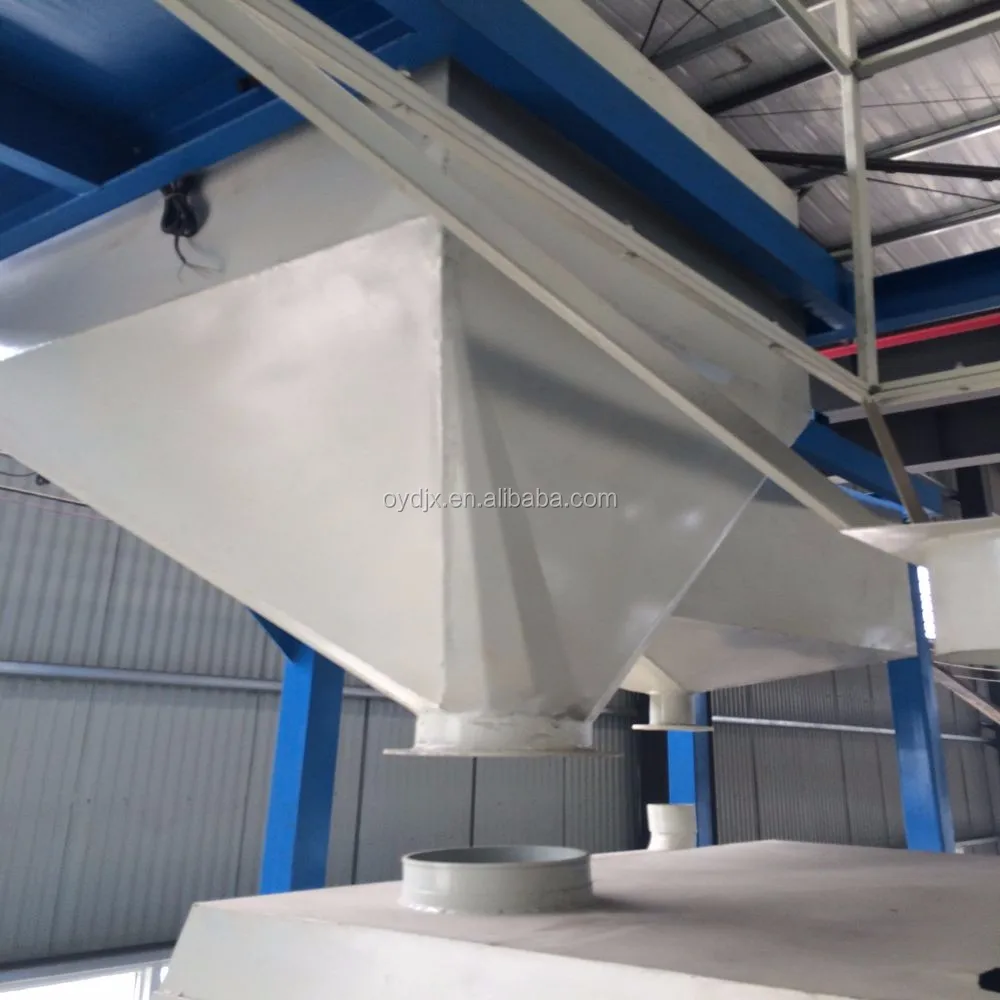

Name: Mixing platform

Brand:Oyade

Original:China

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process.

Main Features

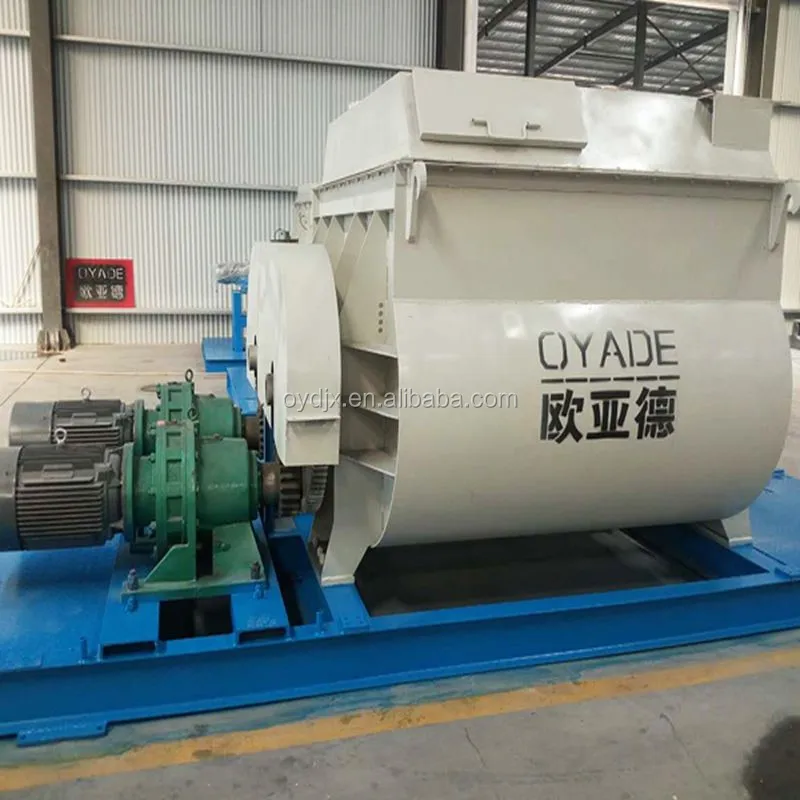

Name: Mixer
Brand: Oyade
Original: China
Domestic famous engines, strong driving force, high economic benefits,low failure rate .Double shaft mixing machine ,fully stirring and no blocking.

Machine Parts

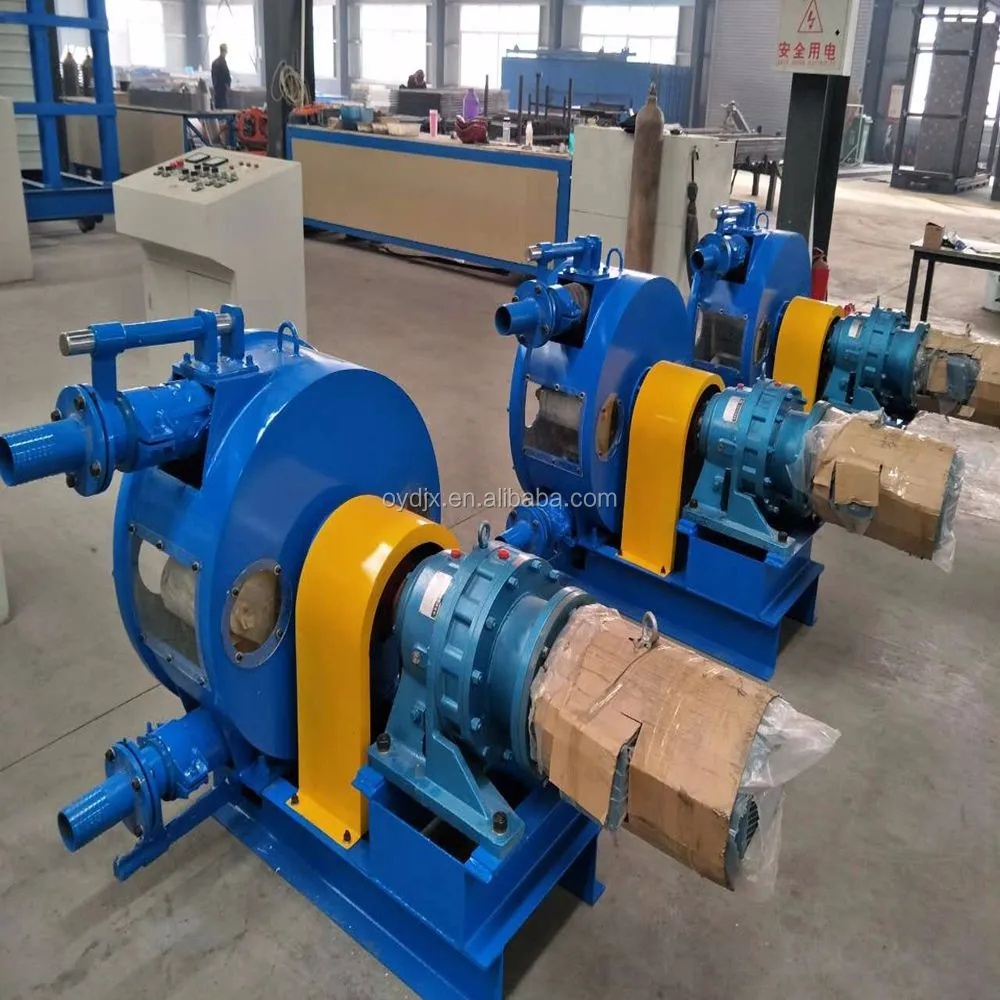

Name: Pumping machine
Brand:  Oyade
Original: China
Used to paste into the mold, can avoid the air holes , avoid waste of raw material and save cost .

Machine Parts

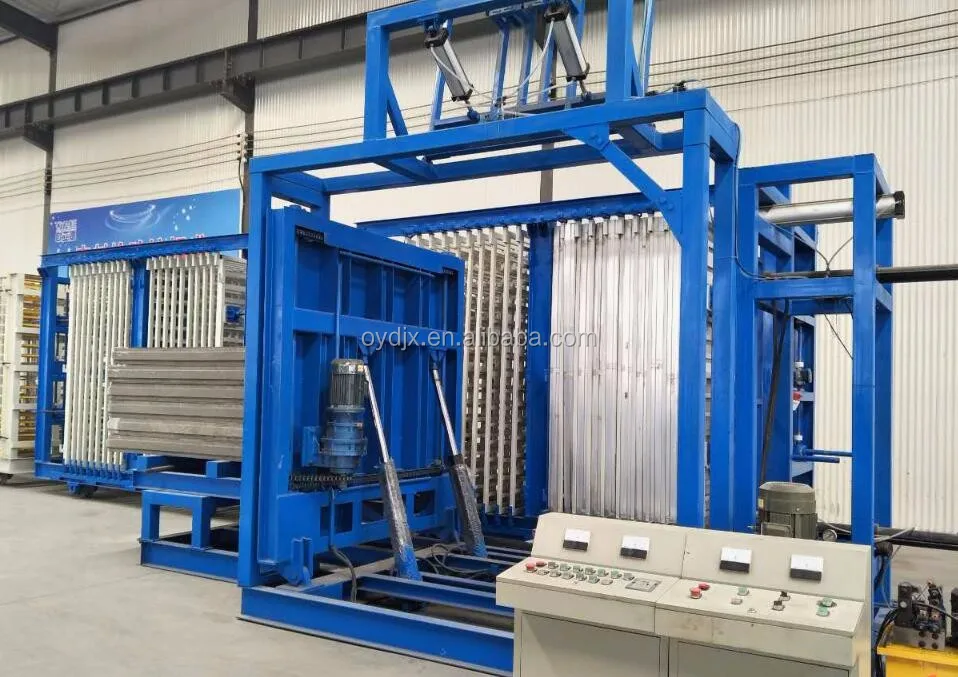

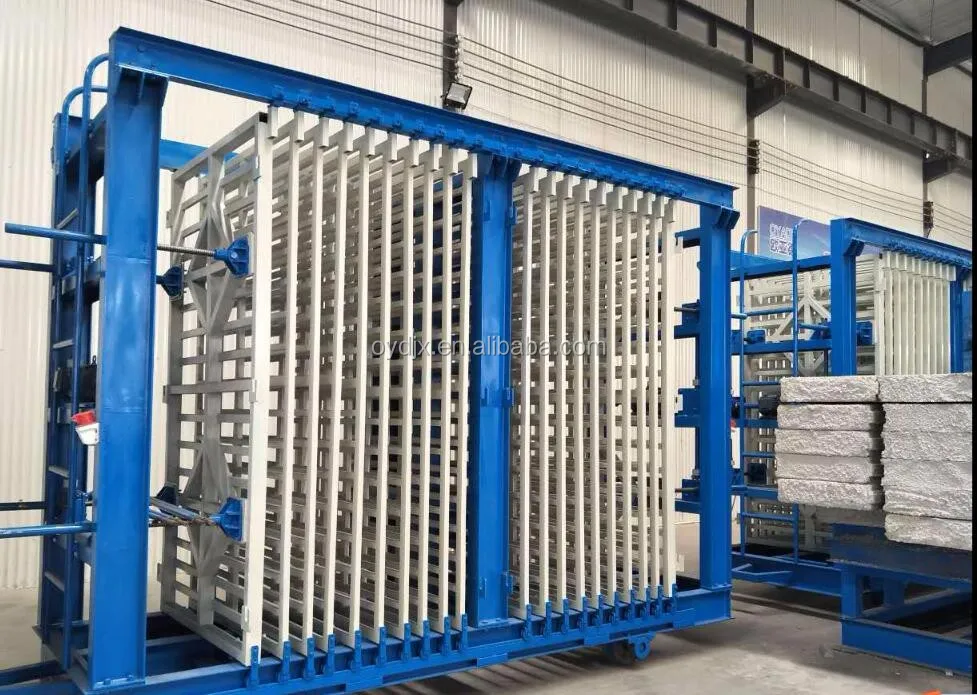

Name: Verticle automatic overturn  mould vehicle
Brand:  Oyade
Original: China
Precision accuracy, rigor, convenient installation, plate shape from the stability, not deformation, not cracking

Machine Parts

Name:Mold car traction system
Brand: Oyade
Original: China
Automatically transport mould car to move on the rail
.

Machine Parts

Name: materail metering system
Brand: Oyade
Original: China
Automatic cement metering , automatic water metering ,automatic EPS metering .Accurate measurement ,saves raw materials and ensures the quality of finished products .

 Boiler System                                                                     EPS forming system

Certifications
Panel parameter
installation
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ
1
Q: How long is the warranty of your equipment?
A: 1year
2
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
3
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
4
Q: How will you provide installation&commissioning
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
