lightweight concrete wall panel mold car

FOB Reference Price:Get Latest Price
$30,000.00 - $450,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
10000-800000sqm per year
Power(W):
800-1200kw
Condition:
New
Application:
Building Materials Machinery
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
OYADE
Model Number:
OYADE-lightweight concrete eps sandwich wall panel mold car
Voltage:
380V/50HZ
Dimension(L*W*H):
12600*1950*1600mm
Weight:
1.5t
Features:
Easy Operation
Certification:
ISO9001
Item:
lightweight concrete wall panel mold car
Installation& commissioning:
Engineer assigned
Thickness:
50-200mm
Advantages:
hollow core; non-surface panel; sandwich panel
Automatic:
Full/semi automatic
Capacity:
20000-500,000sqm/year
Length:
2440-3600mm
Performance:
waterproof; heat insulation; fireproof; anti-earthquake, etc
Raw material:
EPS foam; cement; fly ash; calcium silicate board/mgo board, etc
Width:
610mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
80 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard package suited for shipping transportation;
We use pallet; box to protect every part.
We mark every part with your required label.
Port
Qingdao
Lead Time :
30 days after deposit
Product Description

vertical eps concrete wall panel mould production line supplier:


eps sandwich panel machine line is a new development of building materials. Our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.


This is our unique design, which can full automatically demoulding, 20panels/time. So can save a lot of your labor cost

Machinery Parameters
Capacity
20,000sqm~800,000sqm per year
Thickness
50-250mm thickness. special sizes need to be customized
Length
2440~3600mm, special sizes need to be customized
Width
610mm , special sizes need to be customized
Raw material
There are mainly two different types
1. Cement+EPS/fly ash/ceramsite/sand
2. Foamed cement+additives
Finished board type
1. sandwich board, with surface board
2. solid panel, without furface board
Surface board types
1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Electrical components
There are mainly two different types
Detailed Images

Machine Parts

Name: mixer


double shaft mixer make all the material balance, higher capacity

Main parts

Name: wall panel mold car

Vertical wall panel mold car can produce 40 sheets one times. So the production capacity is very higher. It can produce sandwish wall panel and solid wall panel.

Machine Parts

Name: full automatically demould car



It is fully automatically demolding the wall panel. It can demould 20 sheets one time and need about 20 mins for one mould car, which improve the capacity and save labor cost.

Main Features

Name: PLC control cabinet

For the control systerm, we use PLC simens system, which  is higher quality.

Main parameters

Popular product Specifications

EPS Lightweight wall panel

Panel thickness(mm)
Panel width(mm)
Panel length(mm)
60
610
2440-3000
75
610
2440-3000
90
610
2440-3000
100
610
2440-3000
120
610
2440-3000
150
610
2440-3000
180
610
2440-3000
Raw material
Name
Cement
Fly ash
Sand
Polystyrene particles
Admixtures
Calcium silicate board
Water
Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C
Mold car specification
Panel thickness
Panel width
Panel length
Quantity(block/each car)
Sqm/car
50
610
2440
66
98.2
60
610
2440
58
86.3
75
610
2440
48
71.4
90
610
2440
42
62.5
100
610
2440
38
56.6
120
610
2440
34
50.6
150
610
2440
28
41.7
180
610
2440
24
35.7
Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.
FAQ
Q:
Do you supply spare parts?
A:
Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q:
Will you provide trainning?
A:
The training is free of charge , and our engineer will be on duty to train your worker.
Q:
How will you provide installation&commissioning?
A:
Will send 2~4engineers (adjustable according to the degree of automatic )to installall and testing the whole line for you
Q:
How long is the delivery time?
A:
Generally 45-90working days for one set. But it differs from configuration and our schedule.
Q:
How much land do I need?
A:
It is differet from capacity and configuration. If you have land, can send to me, we will design layout for you.
Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.

Finished Products

sandwish wall panel

91.8% Response Rate

solid wall panel

91.8% Response Rate

hollow core wall panel

91.8% Response Rate

Related Products

Oyade warehouse

91.8% Response Rate

Wall panel production line layout

91.8% Response Rate

Wall panel finished products

91.8% Response Rate

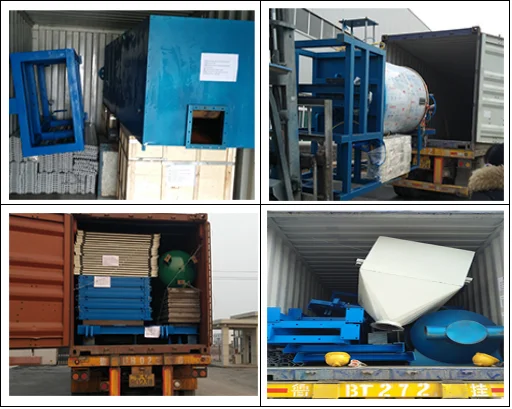

Packing & Delivery
Packaging
1. 20FT/40FT standard land and sea package;

2. The PLC controller covered by foam film;

3. Spare parts and some some parts packed in box;

4. All components fixed by steel wire in container.
