precast wall panel machine for sip panel

FOB Reference Price:Get Latest Price
$30,000.00 - $450,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
160sets/year
Condition:
New
Application:
wall panel
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
Ouyade
Model Number:
OYD-J2015
Voltage:
380V/50HZ
Features:
Easy Operation
Certification:
ISO CE
Item:
precast wall panel machine for sip panel
Thickness:
40-200mm
Advantages:
non-surface panel; sandwich panel
Automatic:
Full/semi automatic
Capacity:
20000-500,000sqm/year
Length:
2400-3000mm
Performance:
waterproof; heat insulation; fireproof; anti-earthquake, etc
Raw material:
EPS foam; cement; fly ash; calcium silicate board/mgo board, etc
Installation& commissioning:
Engineer assigned
Width:
610mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
Supply Ability
Supply Ability:
80 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard package suited for shipping transportation;
We use pallet; box to protect every part.
We mark every part with your required label.
Port
Qingdao
Lead Time :
1-3months, according to your capacity and required configuration
Video Description
Product Description
EPS lightweight panel making production line mainly has the following parts.
Foaming system, storage system, automatic conveying system, automatic measuring system, mixing system, pumping and pouring system, panel forming system and operating system


Main parts

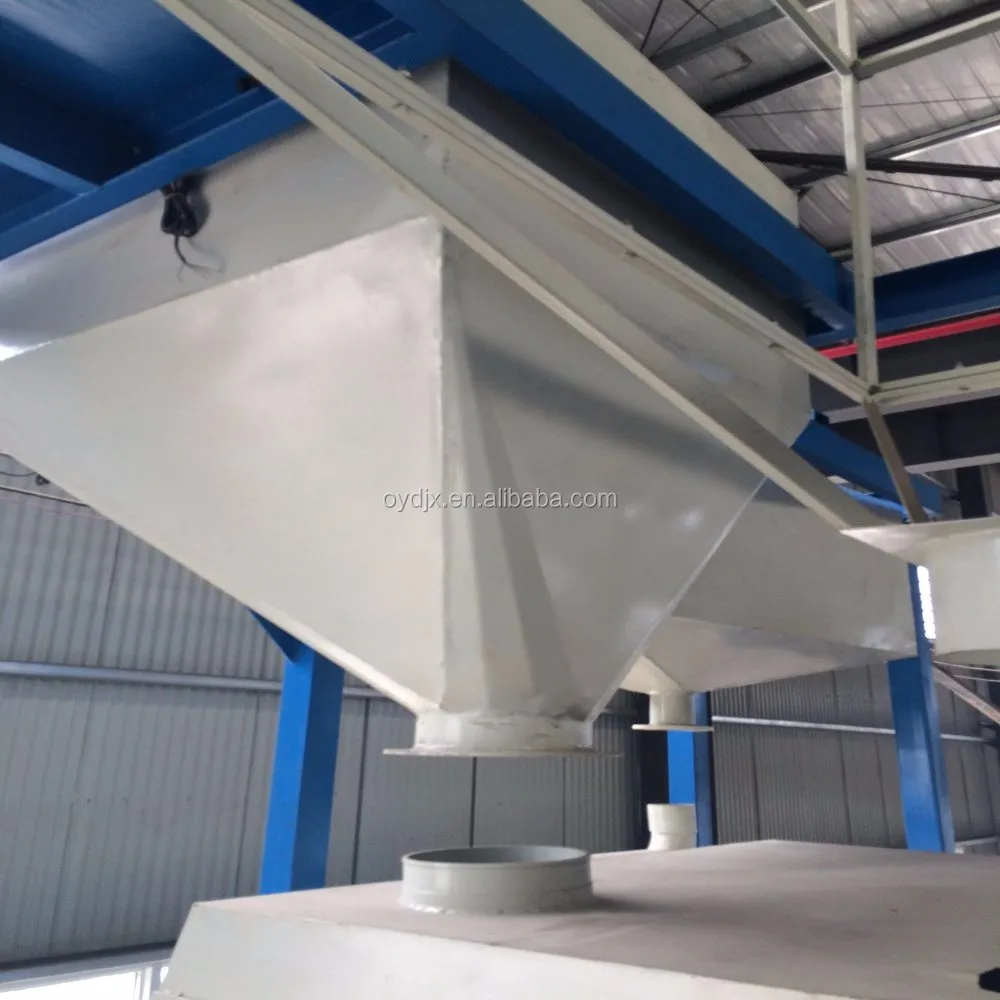

Mixing platform



We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.
There is vibrator on the mixer so as to make the materials without blocking.

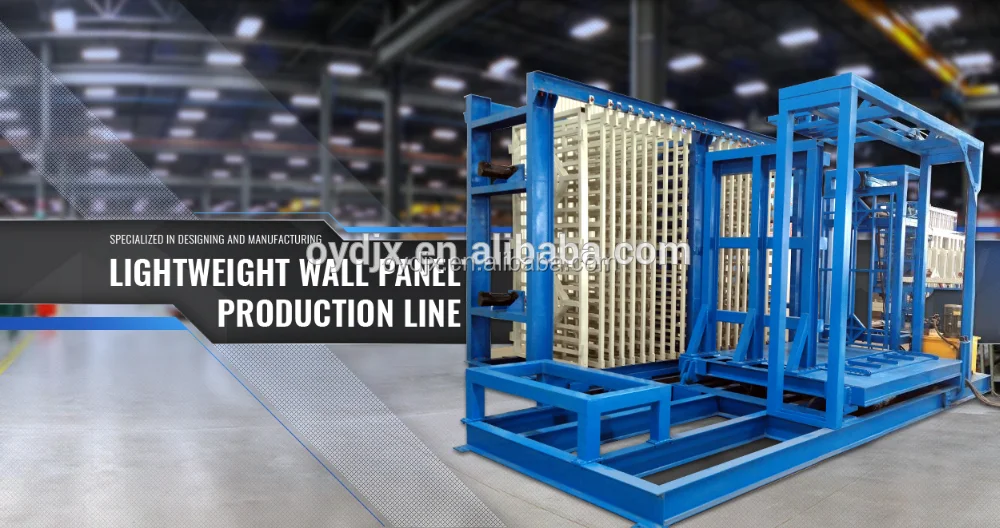

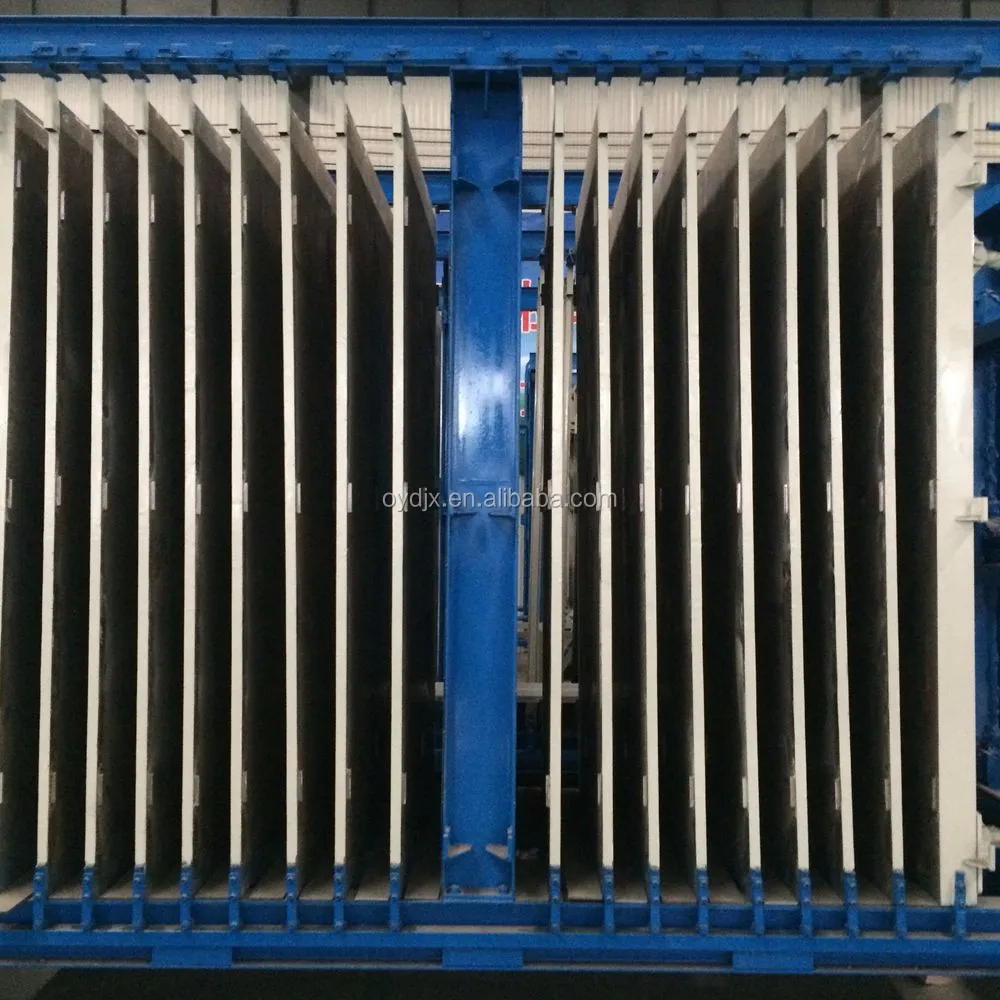

Vertical mold car - 1st kind

Capacity: Vertical mold car is large, can produce 40 sheets one times.
Operation: vertical mold car is high
Finished board type: this kind of mold can produce sandwich board(with surface board)

Vertical mold car - 2nd kind

This kind of mold car is our unique advantage, we could use this mold can produce sandwich board(with surface board) and without surface board solid panel


Full automatically demold car

It is fully automatically demold the wall panel. It can demold 20 sheets one time and need about 20 mins for one mould car, which improve the capacity and save labor cost.

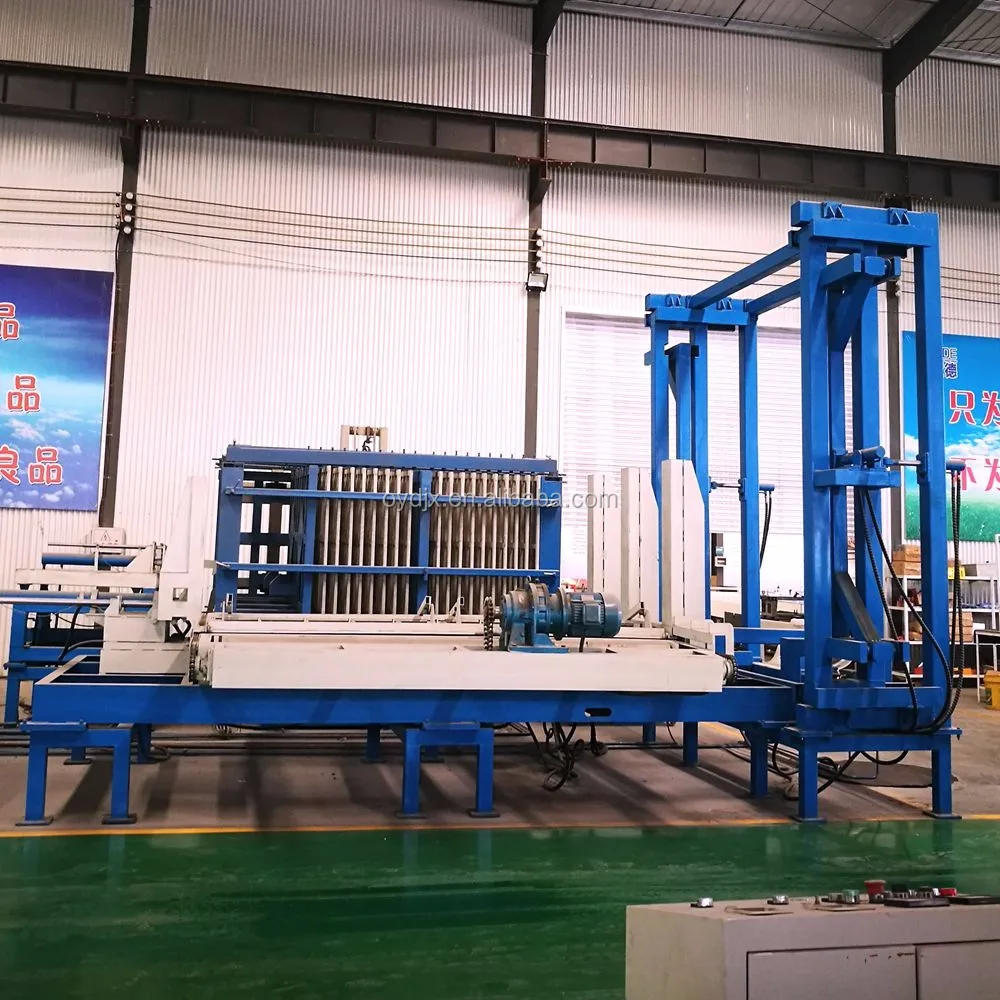

Full automatic turnover; Demolding; stacking system


Turn over the mold car → pull out the panels automatically, largest advatage is it could pull out 40 panels at one time →turn over the board make it horizontally→use the seperate machine to seperate the board

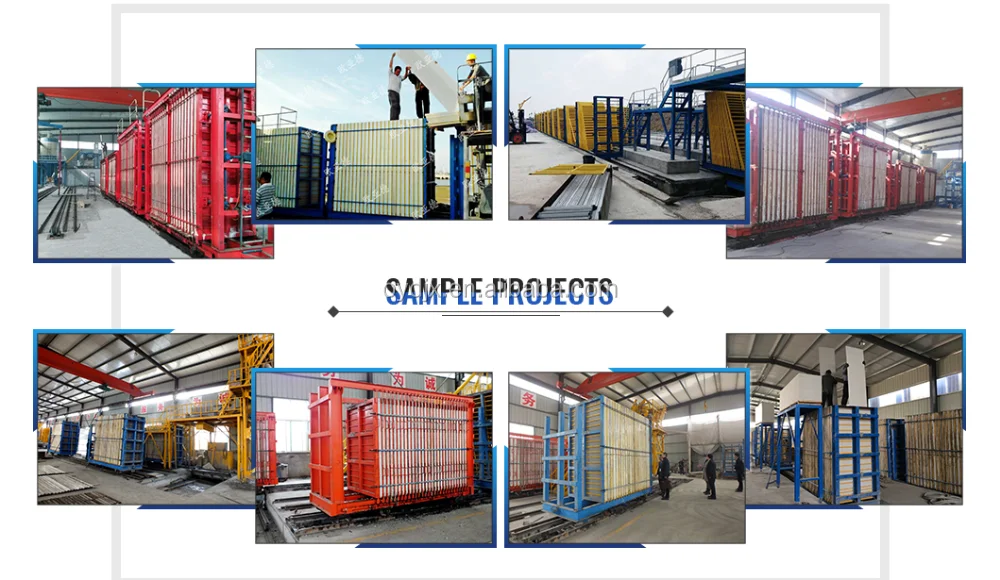

Sample projects


Packing & Loading



Packaging Details


We will design eps wall panel production line loading qty many times, so as to save your sea freight.

1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving

Delivery Time
within 60 days after received the deposit


Our factory


Installation

Installation & Training


1.Face to face, also can design the machine line according your detial request.

2.Our engineers are available for over-seas, technical  supported  until the  workers know how to operate the eps    sandwich wall panel production line
.
