automatic modern design eps cement sandwich concrete wall panel making machine for concrete precast moulding slab

FOB Reference Price:Get Latest Price
$250,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OYD2500
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
50set/year
Power(W):
100-280KW
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Condition:
New
Application:
wall panel machine
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
Ouyade
Voltage:
380V/50HZ, 380V 50HZ 3phase, adjustable
Dimension(L*W*H):
2400*1000*1300
Weight:
30-100tons
Features:
Easy Operation
Certification:
ISO9001
Name:
hollow core wall board making machine
Mold car type:
Horizontal mold car
Finished board thickness:
90-200mm
Production capacity:
100000 sqm per year - 600000 sqm/year
Automation degree:
High automatic or normal automatic
Raw materials:
Cement, EPS bubble, mgo board/calcium silicate board
Workers needed:
about 8-15 persons
Electrical components:
Siemens or Schneider or famous domestic brand
Supply Ability
Supply Ability:
80 Set/Sets per Year

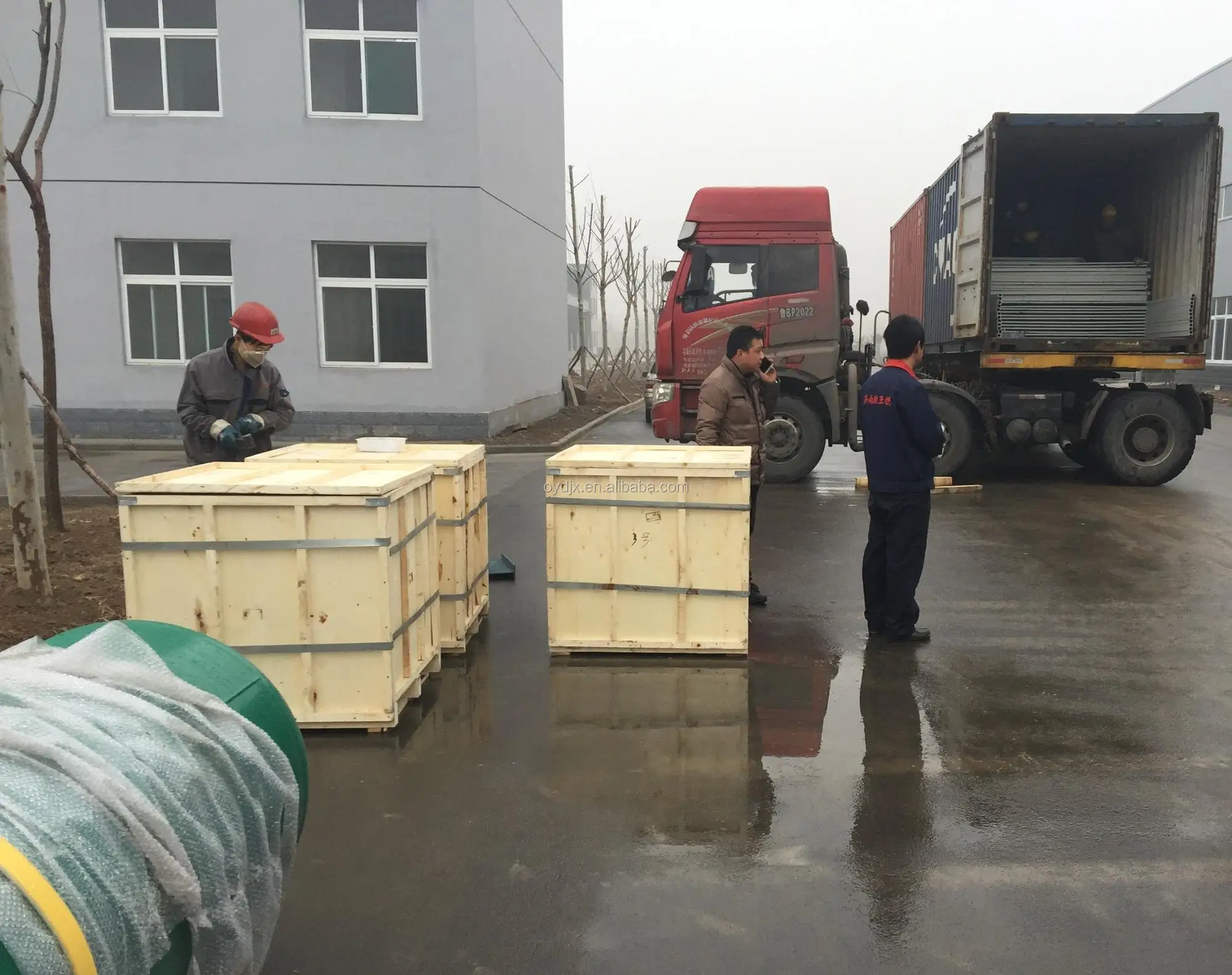

Packaging & Delivery
Packaging Details
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Port
China Qingdao Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Brief Introduction of lightweight hollow core wall board making machine

This is multi-functional production line, can be full automatic and semi automatic. Can produce different kinds of finished products, including: GRC, gypsum block; Mgo/MgSO4 hollow core wall panel; cement hollow wall panel, etc.

Detailed Images
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

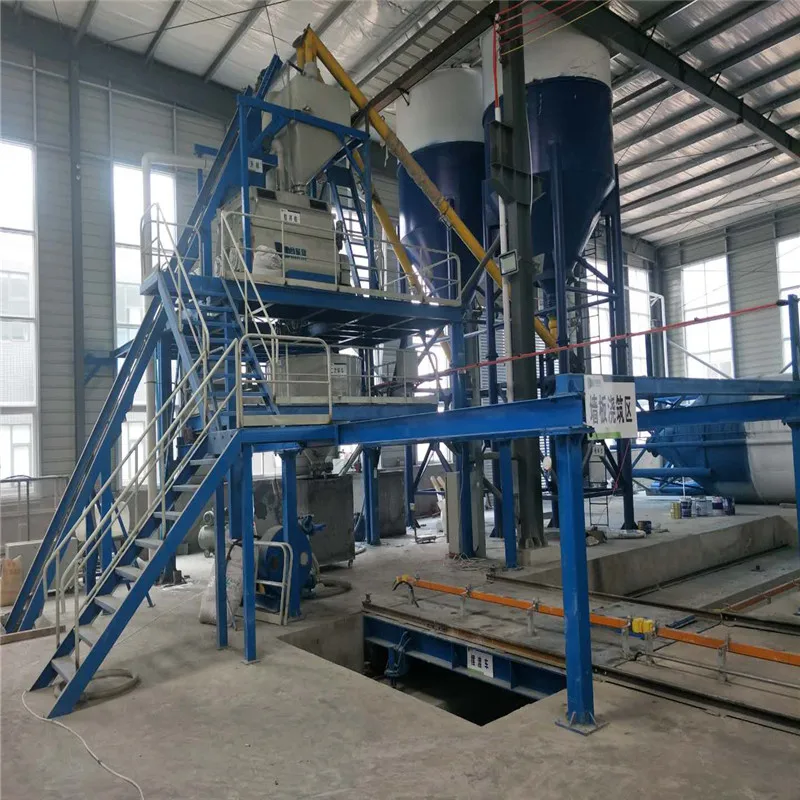

Name: full automatic mixing platform



Brand: OYD brand



Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.



Name: Pumping system


Brand: OYD brand

used to paste into the mold, can avoid the air holes.
Capacity
20,000sqm~600,000sqm per year
Finished board size
Lightweight hollow core panel
Thickness
90-200mm thickness. special sizes need to be customized
Length
2440-3000mm, special sizes need to be customized
Width
610mm, special sizes need to be customized
Raw material
There are mainly three different types
1. Cement+fly ash/eps/slag/ceramsite(optional, can choose to add or not add)
2. Gypsum
3. MGO+chloride /sulfate+foaming agent+wood chip(optional )
Configuration
Full automatic/semi automatic
Electrical components
Siemens or Schneider or famous domestic brand

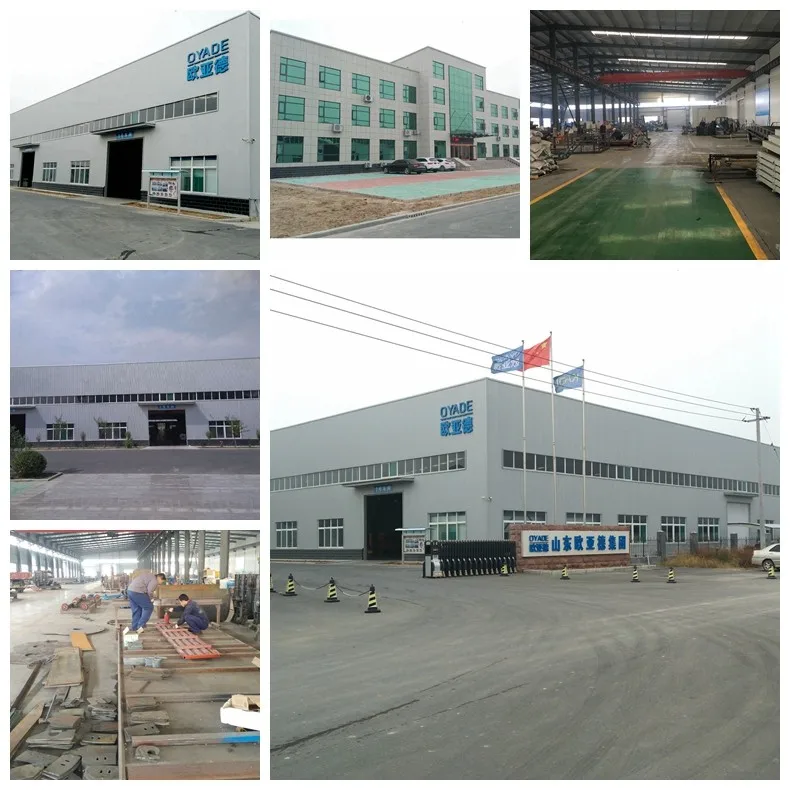

Our Company
Sample Project

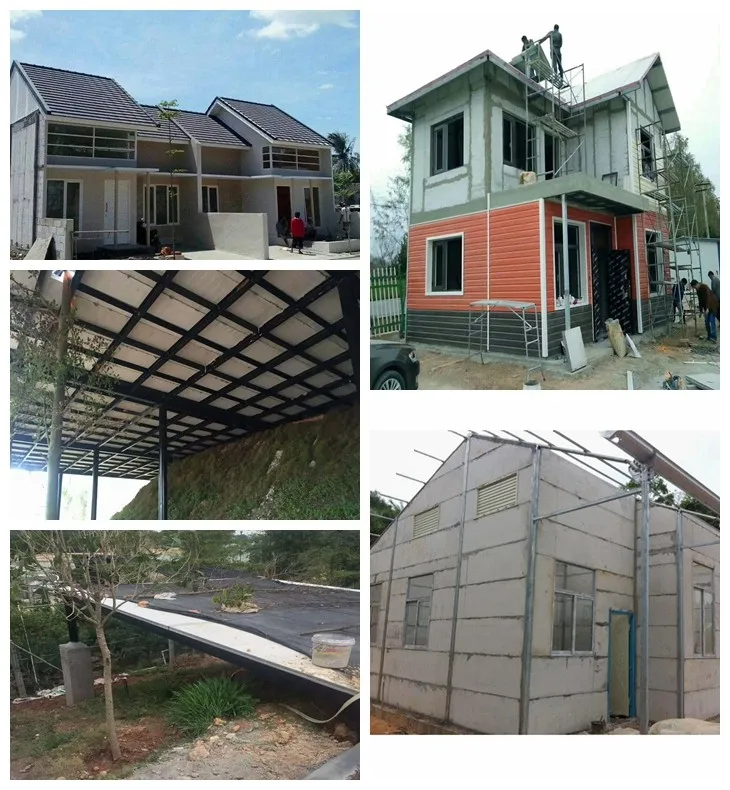

Finished Products

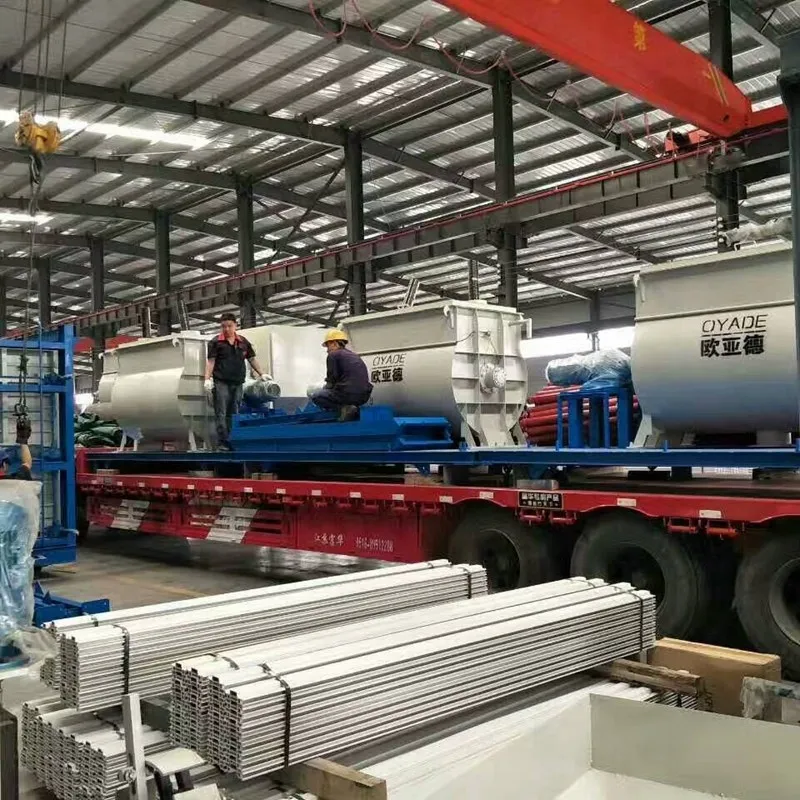

Packing & Delivery

Main Equipments

Name: full automatic mixing platform
Brand: OYD brand
Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.
