eps concrete sandwich wall panel machine from Shandong Oyade

FOB Reference Price:Get Latest Price
$100,000.00 - $190,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
sandwich wall panel machine for sale
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
15000 Sheets
Power(W):
800-1200kw
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Food & Beverage Shops, Advertising Company
Condition:
New
Application:
Building Materials Machinery, Calcium silicate /Mgo/Cement fiber EPS sandwich panel production
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
OYADE sandwich wall panel machine for sale
Voltage:
380V/50HZ
Dimension(L*W*H):
12600*1950*1600mm
Weight:
5 T
Features:
Easy Operation
Certification:
ISO9001
Key Selling Points:
Easy to Operate
Name:
sandwich wall panel machine for sale
Advantages:
Light weight/soundproof/waterproof/fireproof/heatproof etc
Product size:
2440x610x(60-180)mm normally, can be adjusted accordingly
Capacity:
100,000-400,000 sqm per yeaR
Automation degree:
full/semi/simple automatic
Machine material:
High quality carbon steel
Control System:
PLC with touch screen
Certificate assurance:
CE, ISO9000 etc
Supply Ability
Supply Ability:
30 Set/Sets per Year

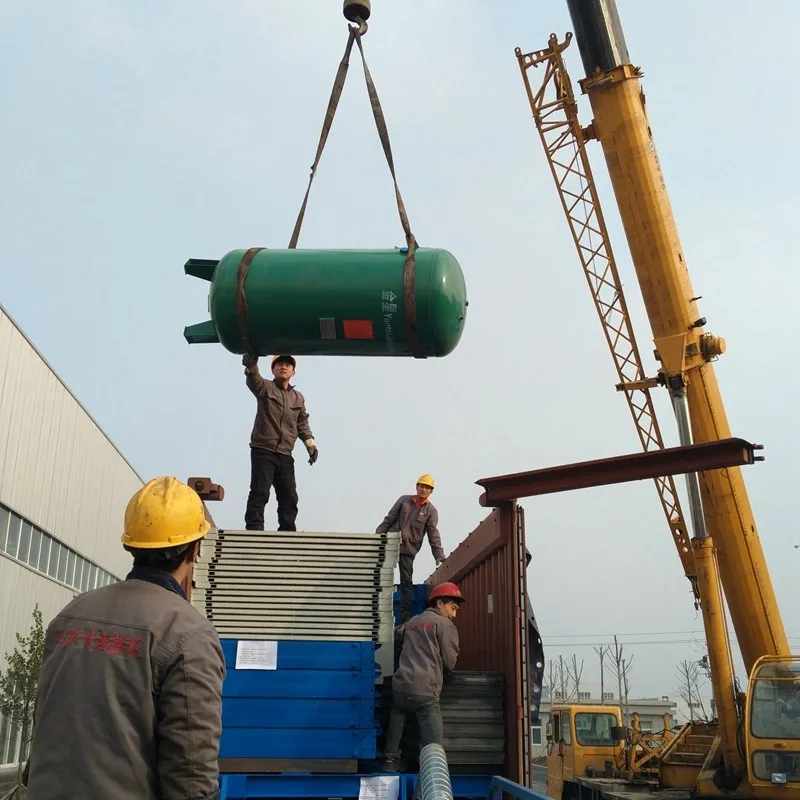

Packaging & Delivery
Packaging Details
1. 20FT/40FT standard land and sea package;
2. The PLC controller covered by foam film;
3. Spare parts and some some parts packed in box;
4. All components fixed by steel wire in container.
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Main parameters

wall panel Specifications

EPS Lightweight wall panel

Panel thickness(mm)
Panel width(mm)
Panel length(mm)
60
610
2440-3000
75
610
2440-3000
90
610
2440-3000
100
610
2440-3000
120
610
2440-3000
150
610
2440-3000
180
610
2440-3000
Raw material
Name
Cement
Fly ash
Sand
Polystyrene particles
Admixtures
Calcium silicate board
Water
Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C
Mold car specification
Panel thickness
Panel width
Panel length
Quantity(block/each car)
Sqm/car
50
610
2440
66
98.2
60
610
2440
58
86.3
75
610
2440
48
71.4
90
610
2440
42
62.5
100
610
2440
38
56.6
120
610
2440
34
50.6
150
610
2440
28
41.7
180
610
2440
24
35.7
Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.
Product Description

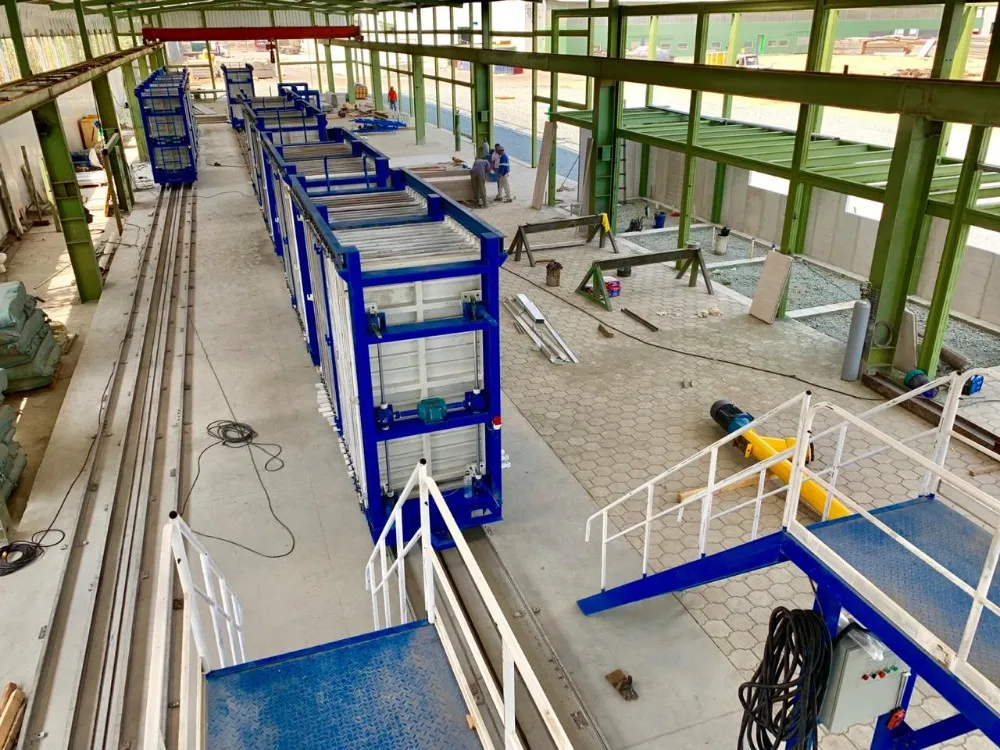

EPS cement sandwich wall panel production line from Oyade factory, Shandong Province

eps sandwich panel machine line is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.


This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost

Machinery Parameters
Capacity
20,000sqm~600,000sqm per year
Thickness
50-250mm thickness. special sizes need to be customized
Length
2440~3600mm, special sizes need to be customized
Width
610mm , special sizes need to be customized
Raw material
There are mainly two different types
1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
2. Fomed cement+additives
Finished board type
1. Composite board/sandwich board, with surface board
2. Lightweight solid panel, without furface board
Surface board types
1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Electrical components
There are mainly two different types
Main Equipment


Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

Name: Pumping system
Brand: OYD brand
Used to paste into the mold, can avoid the air holes.

The feeding machine can be movable, or fixed, matched well with the mold car, easily operate


Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

Name: Automatic unloading machine
Brand: OYD brand

After curing, unloading the wall panel and stacking.

hollow core wall panel
sandwish wall panel
sandwish wall panel

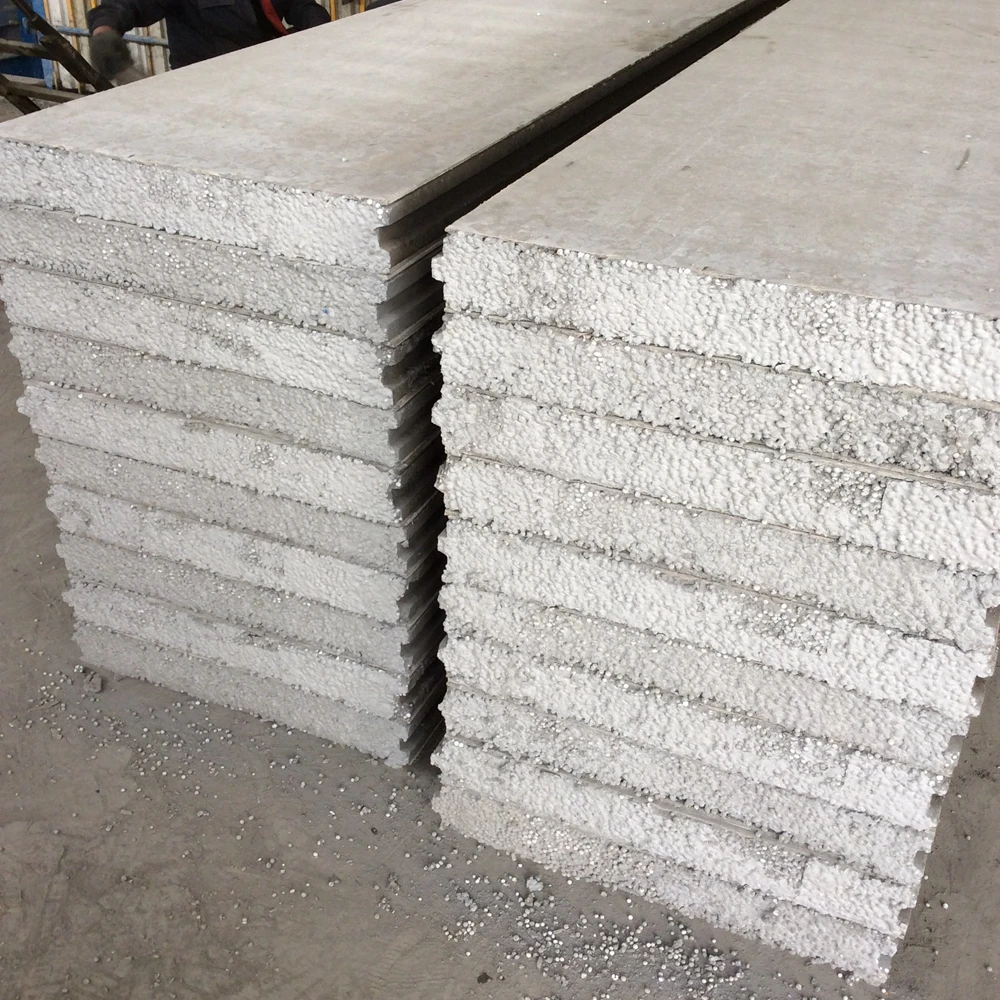

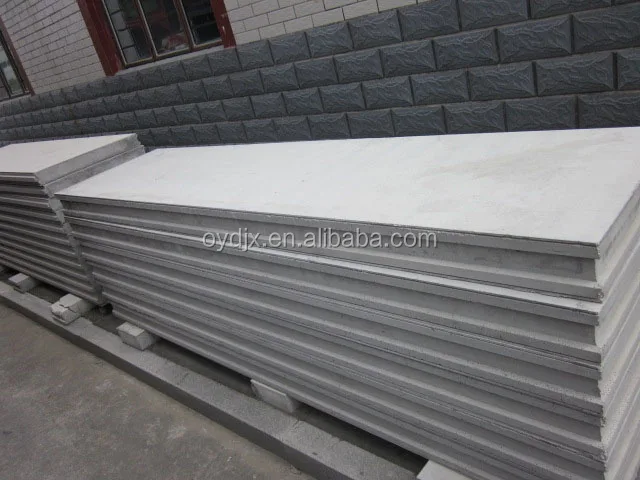

Finished Products

sandwish wall panel

91.8% Response Rate

solid wall panel

91.8% Response Rate

hollow core wall panel

91.8% Response Rate

FAQ
Q:
Do you supply spare parts?
A:
Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q:
Will you provide trainning?
A:
The training is free of charge , and our engineer will be on duty to train your worker.
Q:
How will you provide installation&commissioning?
A:
Will send 2~4engineers (adjustable according to the degree of automatic )to installall and testing the whole line for you
Q:
How long is the delivery time?
A:
Generally 45-90working days for one set. But it differs from configuration and our schedule.
Q:
How much land do I need?
A:
It is differet from capacity and configuration. If you have land, can send to me, we will design layout for you.
Packing & Delivery
Packaging
1. 20FT/40FT standard land and sea package;

2. The PLC controller covered by foam film;

3. Spare parts and some some parts packed in box;

4. All components fixed by steel wire in container.
Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.

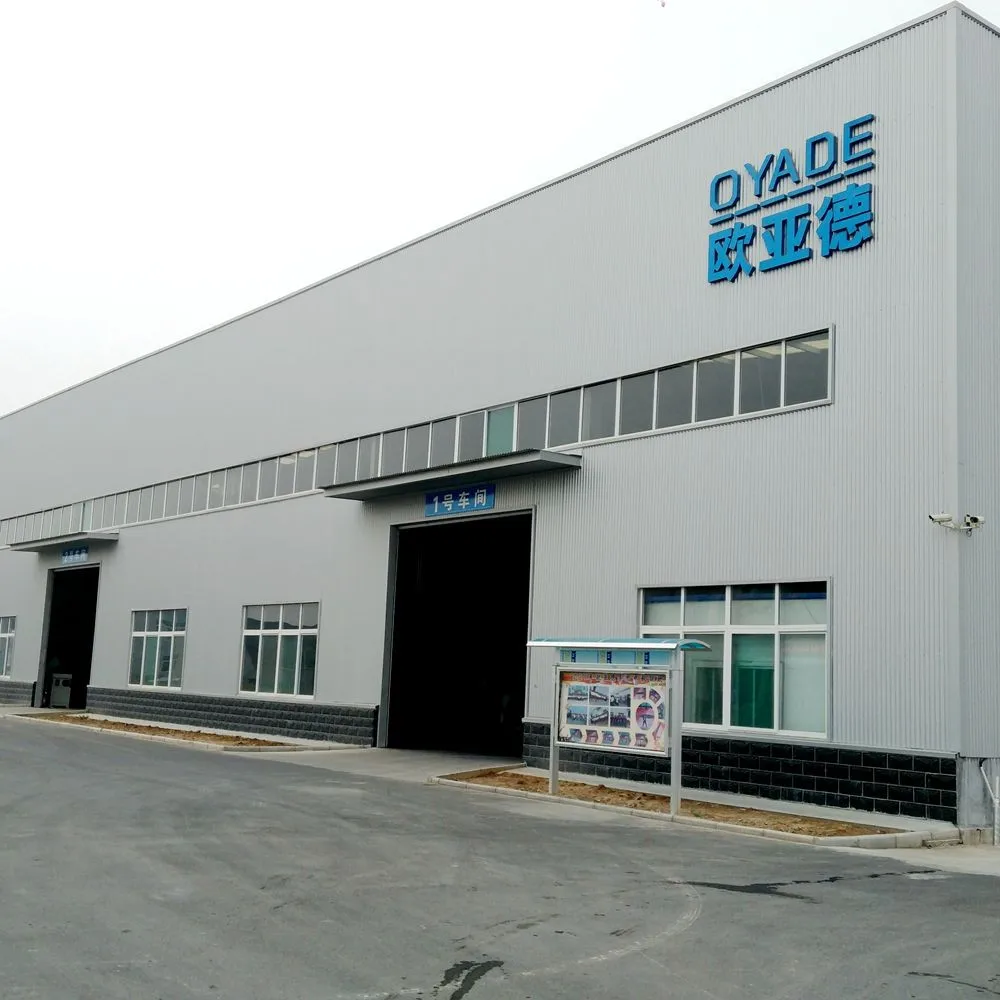

OYAD Factory Contact

Products
Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise
After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
