Lightweight Concrete Wall Panel Forming Machine Manufacturer/ High Quality EPS Cement Sandwich Panel Production Line

FOB Reference Price:Get Latest Price
$200,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OYD3000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
50sets/year
Power(W):
about 100KW, adjustable
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Application:
Wall Panel Machine
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
Ouyade
Voltage:
380V/50HZ,adjustable, 380V 50HZ 3phase, adjustable
Dimension(L*W*H):
finished board size 2440*610
Weight:
about 50tons
Features:
Easy Operation
Certification:
ISO9001
Key Selling Points:
Automatic
Name:
precast compound wall panel making machine
Electrical components:
Siemens or Schneider or famous domestic brand
Production capacity:
100000 sqm per year - 600000 sqm/year
Automation degree:
High automatic or normal automatic
Raw materials:
Cement, EPS bubble, mgo board/calcium silicate board
Land need:
1500 sqm - 3000 sqm
Workers needed:
about 8-15 persons
Machine material:
Stainless steel or good carbon steel or alloy
Supply Ability
Supply Ability:
80 Set/Sets per Year
Packaging & Delivery
Packaging Details
We will design eps wall panel production line loading qty many times, so as to save your sea freight.
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Port
China Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

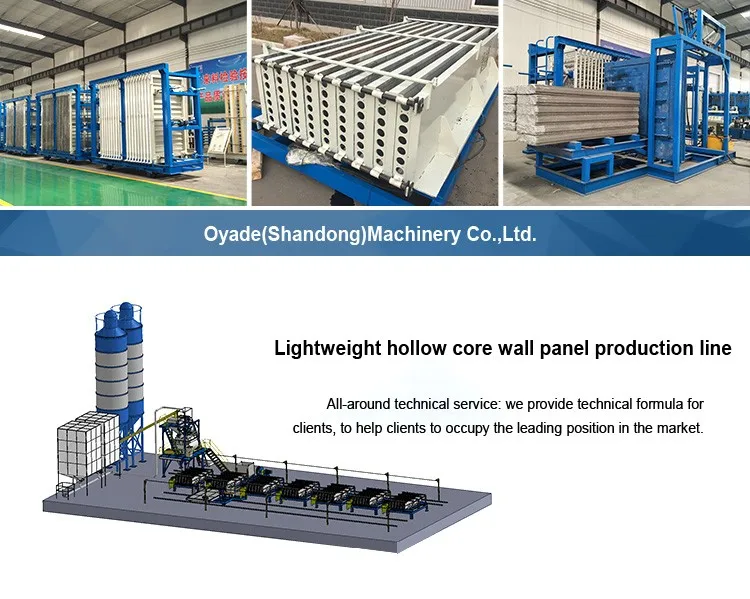

Precast compound wall panel making machine

eps sandwich panel machine line is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.
This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost

Machinery Parameters
Capacity
20,000sqm~600,000sqm per year
Thickness
50-250mm thickness. special sizes need to be customized
Length
2440~3200mm, special sizes need to be customized
Width
610mm , special sizes need to be customized
Raw material
There are mainly two different types
1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
2. Fomed cement+additives
Finished board type
1. Composite board/sandwich board, with surface board
2. Lightweight solid panel, without furface board
Surface board types
1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Electrical components
There are mainly two different types

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .


Main Equipment


Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

Name: Pumping system
Brand: OYD brand

Used to paste into the mold, can avoid the air holes.

The feeding machine can be movable, or fixed, matched well with the mold car, easily operate

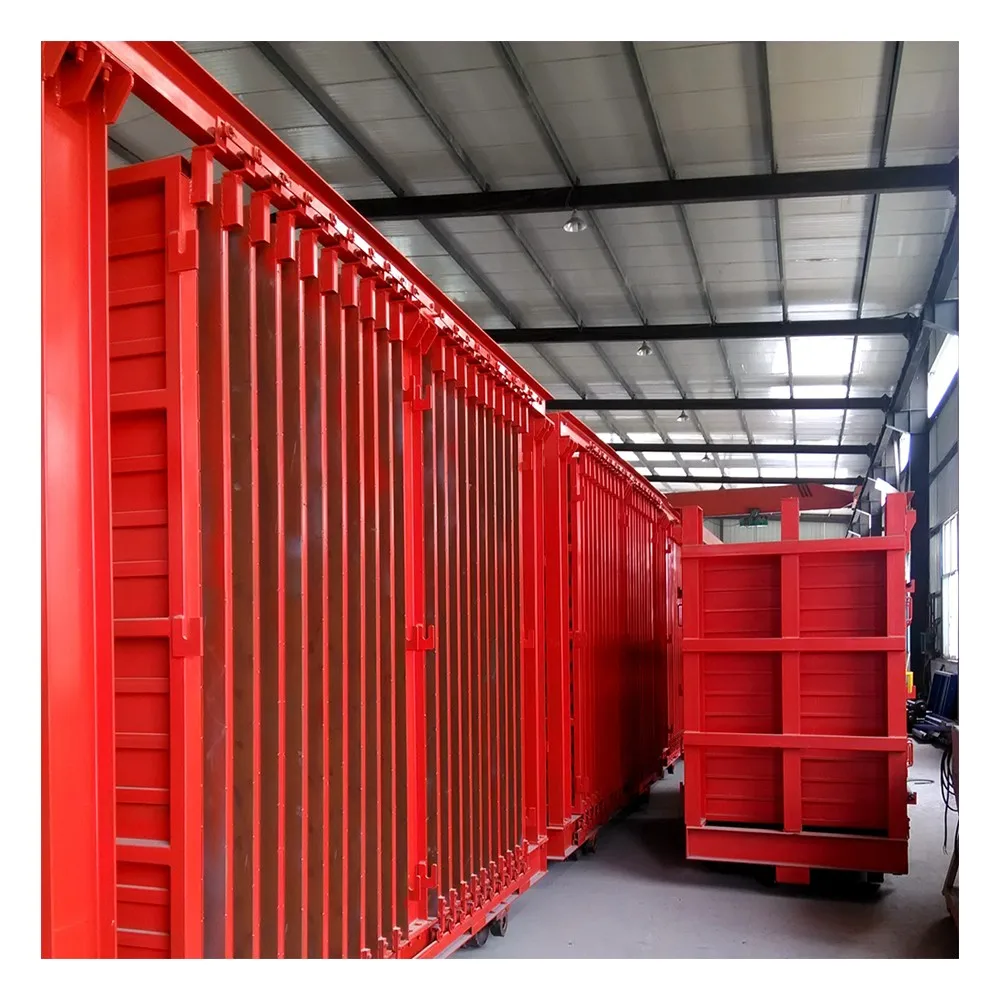

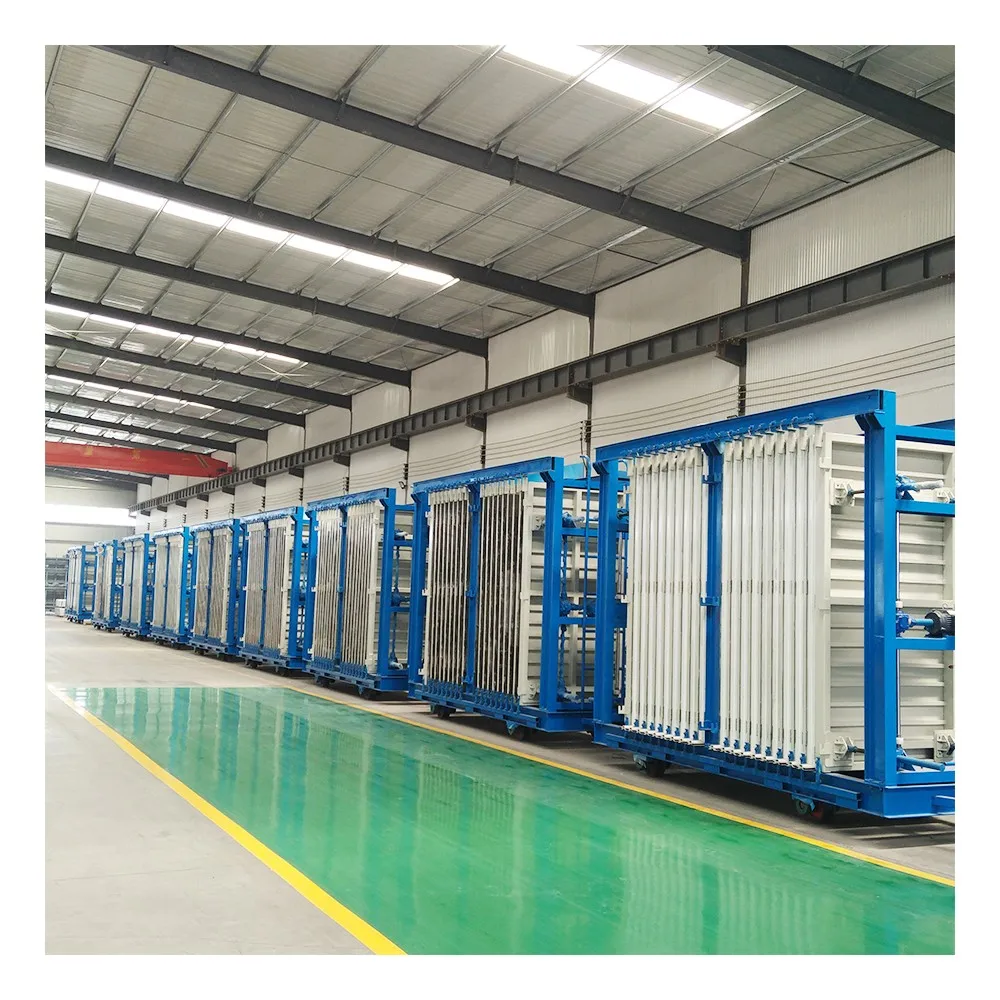

Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

Name: Automatic unloading machine
Brand: OYD brand

After curing, unloading the wall panel and stacking.

our unique advantages: unloading 20panelss per time.

mold car traction system

Boiler system

EPS foaming machine

Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.

Sample Project
Finished Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Main parameters

Popular product Specifications

EPS Lightweight wall panel

Panel thickness(mm)
Panel width(mm)
Panel length(mm)
60
610
2440-3000
75
610
2440-3000
90
610
2440-3000
100
610
2440-3000
120
610
2440-3000
150
610
2440-3000
180
610
2440-3000
Raw material
Name
Cement
Fly ash
Sand
Polystyrene particles
Admixtures
Calcium silicate board
Water
Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C
Mold car specification
Panel thickness
Panel width
Panel length
Quantity(block/each car)
Sqm/car
50
610
2440
66
98.2
60
610
2440
58
86.3
75
610
2440
48
71.4
90
610
2440
42
62.5
100
610
2440
38
56.6
120
610
2440
34
50.6
150
610
2440
28
41.7
180
610
2440
24
35.7
Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.
Packing & Delivery
We have very mature skill for the exporting required package. Never worry about the damage during sea transportation.
Our Factory Contact

Products
Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise
After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
